How to Use the Javascript Debugger

How to Use the Javascript Debugger
JavaScriptQ/A

Introduction

As developers, we’ve traditionally rooted out errors in our programs (we’ll call them bugs from now on if that’s ok) by using meaningful log statements. JavaScript has the famous console.log() method for that.

But while log statements are good, they are less efficient than a tool that enables you to carry out step-by-step debugging. So in this article, we will learn how to use Google Chrome developer tools (also known as DevTools) to debug any JavaScript application effortlessly.

One of the great things about using DevTools is that browser vendors (like Firefox and Microsoft) provide their own tools to debug a JavaScript application, and they work in a similar way. So once we’ve learned how to use the debugging tool for one browser, it’s easy to use for another.

What are we debugging today?

Take a look at the Greet Me app. This JavaScript app asks for your name and invites you to submit a ‘wish’, which will be used to deliver your own personalized greeting.

Figure 1: The Greet Me app showing an error

But wait, there’s a problem here. The greeting message doesn’t print the wish part correctly. It inserts a rogue word, NaN. Thankfully, Chrome DevTools will enable us to identify the issue.

If you want to try out the tips provided below, you can find the Greet Me app at https://greet-me-debugging.vercel.app/. You can also clone the app code from GitHub and run it locally.

Know about the Sources panel

DevTools provides a lot of different tools to perform debugging tasks, including DOM inspection, profiling and network call inspection. But the one we’re interested in right now is the Sources panel, which helps us in debugging JavaScript.

You can open DevTools by pressing the F12 Key, or using a shortcut: either Control+Shift+I (Windows, Linux) or Command+Option+I (Mac). Click the Sources tab to navigate to the Sources panel.

Figure 2: Opening the Sources Panel

The Sources panel has three primary sections.

Figure 3: Sources Panel sections
  1. File Navigator Section: All the files that our Greet Me page requests are listed here.
  2. Code Editor Section: When you select a file from the navigator pane, the content of the file will be listed here. We can also edit the code from here.
  3. Debugger Section: You will find lots of tools available here to set breakpoints, inspect variable values, watch for changes etc.

If your DevTools window is wide or undocked in a separate window, the debugger section will be displayed to the right of the Code Editor pane.

Figure 4: DevTool window is wide open

Set up breakpoints

To start debugging, the first thing to do is to set breakpoints.

Breakpoints are the logical point you want the code execution to pause, so that you can debug it.

DevTools allows you to set breakpoints in many different ways. As we start debugging our application, we will learn how to set them…

  • At the line of code.
  • At conditional statements.
  • At the DOM node.
  • On Event listeners.

Set breakpoints at the line of code

To set a line-of-code breakpoint:

  • Click the Sources tab.
  • Browse the source file from the File navigation section.
  • Go to the line of the code in the Code Editor section on the right.
  • Click on the line number column to set a breakpoint on a line.
Figure 5: Set a line-of-code Breakpoint

Here we have set a breakpoint at the line number 6. The code execution will be paused here.

Tips: Use this when you do not know the exact region of the code to investigate. Even if you just start from somewhere, based on a guess, it will lead to the bug eventually. You can also set up multiple line-of-code breakpoints and investigate. We will see that in the latter part of the article.

Set a conditional breakpoint

To set a conditional breakpoint:

  • Click the Source tab.
  • Browse the source file from the file navigation section.
  • Go to the line of the code in the code editor section on the right.
  • Right-click on the line number and select the Add conditional breakpoint option.
Figure 6a: Right-click on the line number
  • A dialog box appears below the line of code. Start typing the condition. As you type, you will see the autocomplete option suggesting you pick up a condition.
Figure 6b: Enter a condition
  • Press Enter to activate the breakpoint. You should see an orange icon appear on top of the line number column.
Figure 6a: A conditional breakpoint has been activated

The code execution will be paused whenever the function print() is invoked with the name Joe.

Tips: Use the conditional breakpoint when you know the specific region of code to investigate. As you may be aware of the region of the code, you can inspect further using conditions to find the root cause of the problem.

Set breakpoint on event listeners

To set a breakpoint on event listeners:

  • Click the Sources tab.
  • Expand the Event Listener Breakpoints pane in the debugger section.
  • Select the list of event listeners from the category list to set breakpoints. We have a button click event in our application. We will be looking to select the click checkbox under the mouse option.
Figure 7: Set a breakpoint on the click event listener

Tips: Use this when you want to pause the event listener code that runs after an event is fired.

Set breakpoint at the DOM node

DevTools is equally powerful when it comes to DOM inspection and debugging. You can set breakpoints to pause a code execution when something is added, removed or, changed in the DOM.

To set breakpoints on DOM change:

  • Click the Elements tab.
  • Go to the element that you want to set the breakpoint on.
  • Right-click on the element to get a context menu. Select Break on and then select one of: Subtree modifications, Attribute modifications, or Node removal.

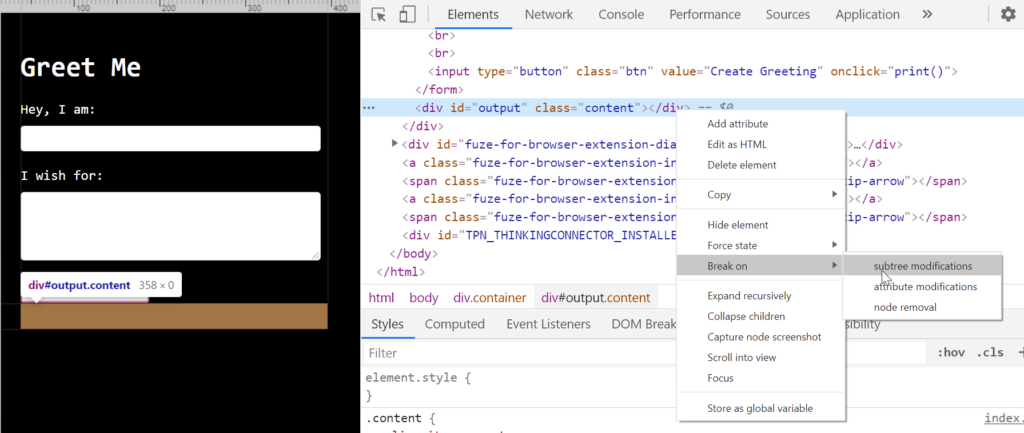

Figure 8: Adding a breakpoint on the DOM change

As you see in the above figure, we are setting a breakpoint on the DOM change of the output DIV with a condition of Subtree modifications. We are aware that a greeting message will be added into the output DIV and the subtree will be modified to break on it.

Tips: Use this when you suspect a DOM change is causing the bug. The related JavaScript code execution will be paused automatically when it breaks on the DOM change.

Step through the Source Code

Now we know all the important methods to set breakpoints. In a complex debugging situation you may have to use a combination of them. Let us see how to step through the breakpoints to figure out an issue.

The debugger section provides five controls to step through the code.

Figure 9: Step through controls

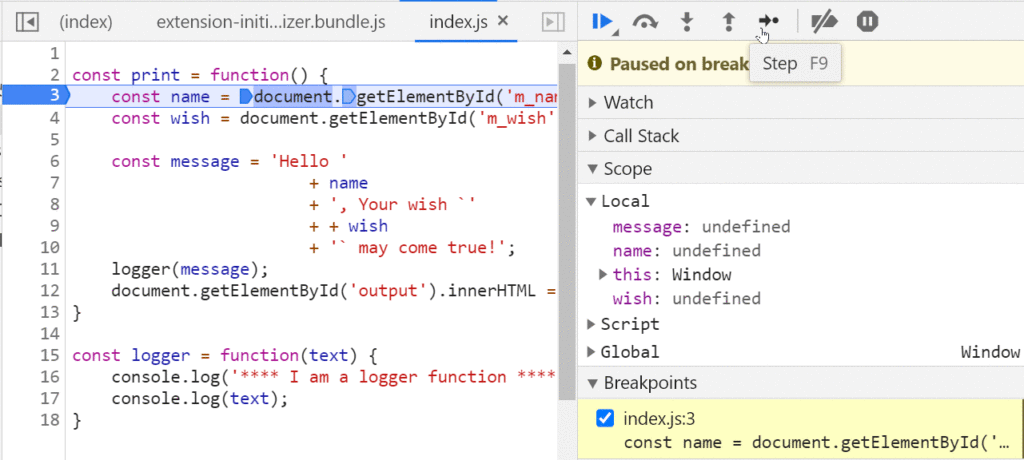

Step(Key shortcut – F9)

This option enables you to step through line by line as the JavaScript code executes. If there is a function call on the way, the step-through also gets inside the function, executes it line by line, and then steps out of it.

Figure 9a: Performing step line-by-line

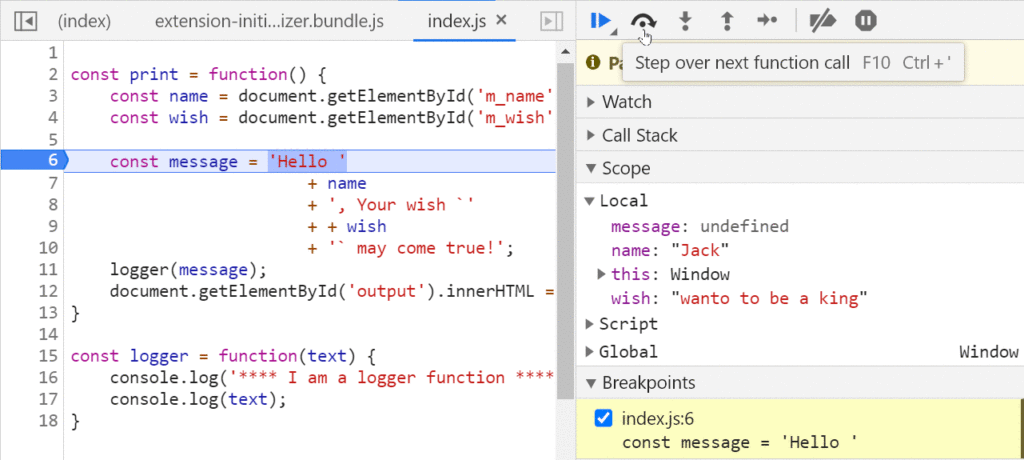

Step Over (Key shortcut – F10)

This option allows you to execute a function without stepping into it. Occasionally, you may be certain that some functions are working properly and not want to spend time inspecting them. In this situation, you should use the step over.

In the example below, we are stepping over the logger() function.

Figure 9b: Step Over the function

Step Into (Key shortcut – F11)

Use this option to investigate a function in greater depth. When stepping through, you may have the feeling that a function is behaving unexpectedly and want to inspect it. Use step into to get inside the function and debug.

In the example below, we are stepping into the function logger().

Figure 9c: Step into the next function call

Step Out(Key shortcut – Shift + F11)

While stepping through a function, you may not want to continue and come out of it. Use this option to step out of a function.

In the example below, we are stepping inside the logger() function and then stepping out of it immediately.

Figure 9d: Step out of the current function

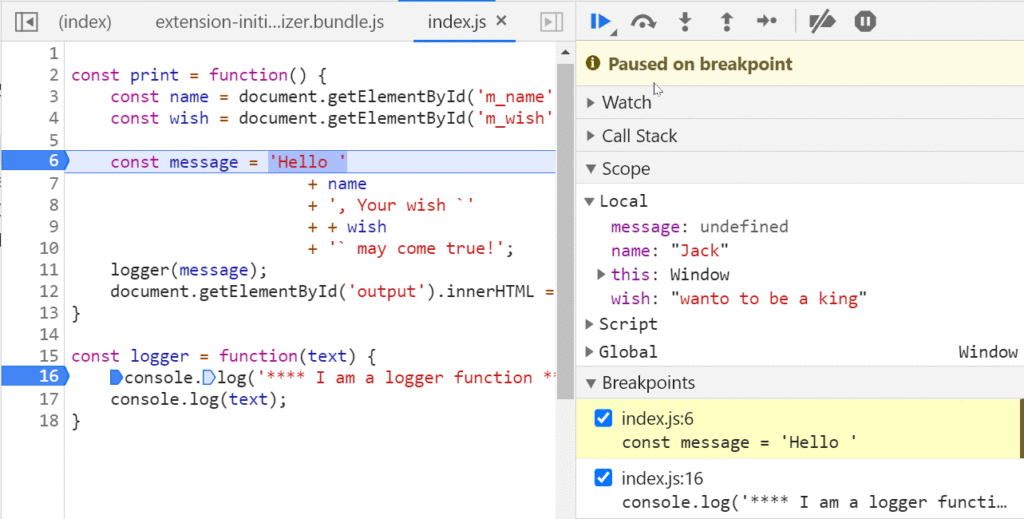

Resume/Jump (Key shortcut – F8)

At times, you may want to jump from one breakpoint to another without debugging any code in between. Use this option to jump to the next breakpoint.

Figure 9e: Resume or Jump to the next breakpoint

Inspect Scope, Call Stack and Values

When you step through the lines to debug, you can inspect the scope and the value of the variables and the call stack of the function calls.

Scope

You can use this to find out what is in the global scope and what its variables are, using the scope panel. You can also find out the value of the this keyword.

Figure 10a: Scope panel

Call Stack

The call stack panel helps to identify the function execution stack.

Figure 10b: Call stack

Values

Inspecting values is the primary way to identify a bug in the code. When stepping through, you can inspect a value simply by doing a mouseover on a variable.

In the example below, we are selecting the variable name to inspect its value at the code execution stage.

Figure 10c: Inspect a value with mouseover

Additionally, you can select a section of the code as an expression to check the value of it. In the example below, we have selected an expression document.getElementById('m_wish') to inspect the value.

Figure 10d: Inspecting value of an expression

Let’s Watch

The Watch section enables you to add one or more expressions and watch their values at execution time. This feature is very useful when you want to do some computation outside your code logic.

You can combine any variables from the code region and form a valid JavaScript expression. At the time of stepping through, you will be able to see the value of the expression.

Here are the steps required to add a Watch:

  • Click on the + icon above the Watch section
Figure 11a: Add a watch expression
  • Add an expression to watch. In this example, we have added a variable wish to watch its value.
Figure 11b: Watch expression value

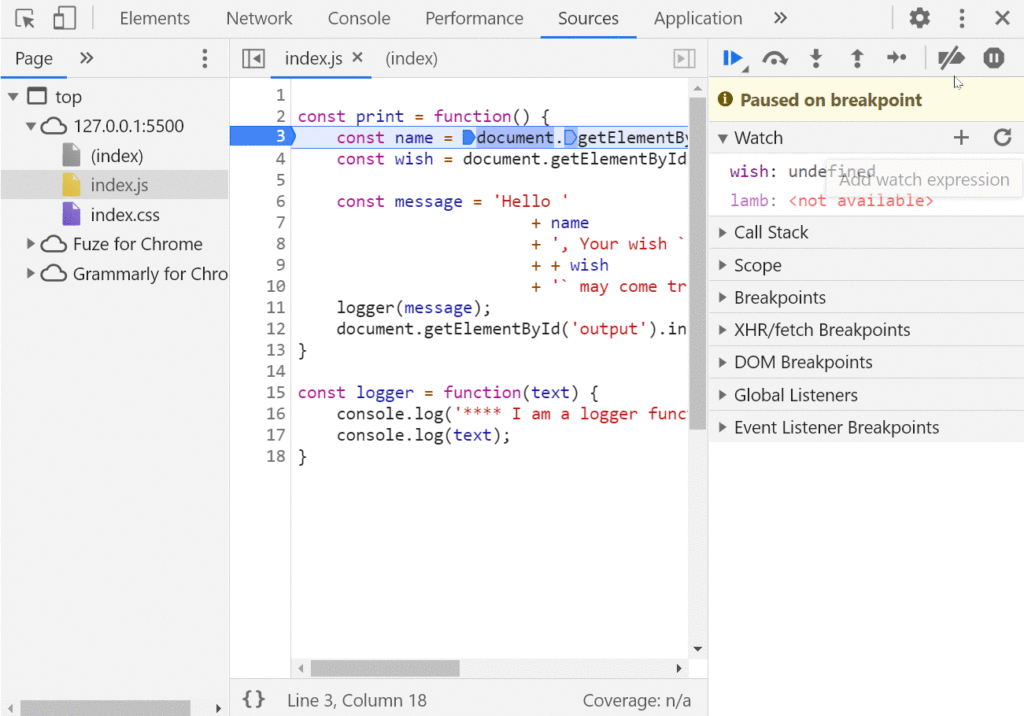

Another way to watch for an expression is from the console drawer. See the example below to know how to activate it.

Figure 11c: Activate the console drawer

Disable & Remove Breakpoints

To disable all the breakpoints at once, click on the Deactivate Breakpoints button(it is circled below.)

Figure 12a: Disable all breakpoints

Please note, the above method doesn’t remove the breakpoints. It just deactivates them for the duration you require. To activate the breakpoints, please click on the same button again.

You can remove one or more breakpoints from the Breakpoints panel by unchecking the checkboxes. You can remove all the breakpoints permanently by doing a right-click and selecting the option, Remove all breakpoints.

Figure 12b: Remove one, more or al the breakpoints

Finally, The Fix

With all that we have learned so far, what do you think is the fix to make the Greet Me app functional as expected? Have you figured that out already?

In case not, it’s just that extra + before the wish variable while constructing the message.

// This is the line where the issue is.
// Identify the extra '+' before the wish.
const message = 'Hello '
                        + name
                        + ', Your wish `'
                        + + wish
                        + '` may come true!';

How would we find that in a realistic debugging scenario? Have a look at this short video demo(without audio),

JS Debugging: Greet Me app Fix

You can also play around with the fixed version from here.

Debug JavaScript with Visual Studio Code

What’s your favorite code editor? Personally, I like Visual Studio code because of its simplicity. We can enable a similar kind of debugging environment using VS Code with just a few simple steps.

VS Code setup for debugging

VS Code has several extensions (like plug-ins) for enabling various features and capabilities. To enable JavaScript debugging, you need to install an extension called Debugger for Chrome. You can install it in either of these ways:

  • Go to the Debugger for Chrome homepage and click on the Install button. This will launch the VS Code and start the installation for you automatically.
  • You can search this extension in the Extensions panel of VS Code and install.
Figure 13a: VS Code extension install

After installation, click on the Run option from the left and create a configuration to run/debug a JavaScript application.

Figure 13b: Enable debugging with configuration

A file called launch.json will be created with some setting information in it. It may look like this:

{
    // Use IntelliSense to learn about possible attributes.
    // Hover to view descriptions of existing attributes.
    // For more information, visit: <https://go.microsoft.com/fwlink/?linkid=830387>
    "version": "0.2.0",
    "configurations": [
        {
            "type": "chrome",
            "request": "launch",
            "name": "Debug the Greet Me app",
            "url": "<http://localhost:5500>",
            "webRoot": "${workspaceFolder}"
        }
    ]
}

You may want to change the following parameters:

  • name: Anything suitable to your app. It is optional to change.
  • url: The URL that your app is running on locally.
  • webRoot: By default the value is ${workspaceFolder}, which is the current folder. You may want to change it to the entry point folder where a file like index.html is located.

The last step is to start the debugging by clicking the small play icon at the top-left corner.

Figure 13c: Start debugging

Understanding debugger panels

VS Code provides similar tools to DevTools for debugging JavaScript. You will find lots of similarities with the Google Chrome JavaScript debugger we have seen so far in this article. Here are the primary sections you should be aware of:

  1. Enable debugging. Press the play button to enable the debugging option.
  2. Controls for stepping through the breakpoints and to pause or stop debugging. This is almost similar to the one we have seen with Chrome DevTools except some of the keyboard shortcuts may differ.
  3. Setting breakpoints on the source code. This is similar.
  4. The scope panel to see variable scopes and values. These are completely the same in both cases.
  5. The watch panel to create and watch expressions.
  6. The call stack of the execution function.
  7. The list of breakpoints to enable, disable and remove.
  8. The debug console to read the console log messages.
Figure 13d: Anatomy of the VS Code debugging controls

A quick demo

Here is a quick demo(1 minute) to showcase the VS Code debugging control usages.

Summary

To Summarize,

  • It is always better to use a tool to debug JavaScript code. A tool like the Google Chrome DevTools or VS Code debugger extension is much better than just relying on the console.log().
  • DevTools Source Panel is extremely powerful, with the capability to inspect variable values, watch expressions, understand scopes, read the call stack etc.
  • There are several ways to set breakpoints and we should use them based on the debugging situation.
  • Managing breakpoints is simple with DevTools.
  • The VS Code debugger extension is equally powerful and a must-try.
  • Even when using a debug tool for local development, remember that it’s good to add meaningful console.log() commands, because with Bugfender you will be able to gather information about problems that are happening when the app is already in production.

That’s all for now. Thank you very much for reading through, hope you find this article useful. Happy debugging! Please feel free to connect with the author on Twitter(@tapasadhikary).

JS Debugging: Setting up VS Code for debugging
